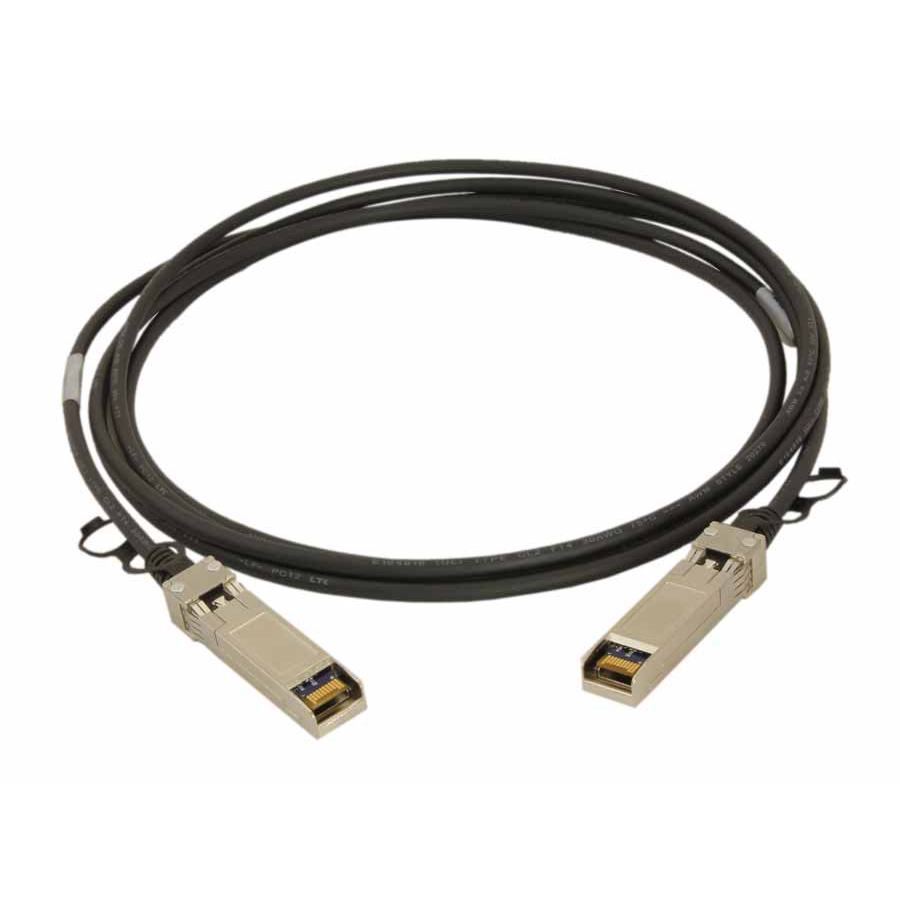

SFP+ Optical Module DAC

The SFP+ copper cable assembly was developed specifically as a cost-effective and low power alternative to optical cables and optical SFP+ modules for short reach links in high-speed interconnect applications.
Description Package Information Inquiry

Chuangmo Series SFP+ copper cable assembly was developed specifically as a cost-effective and low power alternative to optical cables and optical SFP+ modules for short reach links in high-speed interconnect applications.

Applications include: InfiniBand SDR, DDR, and QDR, Ethernet 1G and 10G, Fiber Channel 8G and 10G, FCoE 10G, Networking, Storage, and hubs, switches, routers, servers, and NICs


Features

  • Supports data transfer rates from 1Gbps up to 10+ Gbps

  • Ideal for high speed interconnects in enterprise networking, storage area networks, and at service provider customer hand-off points

  • Combines twin-axial shielded cable configurations with robust die cast housings for enhanced support of high frequency data rates

  • Impedances matched to ensure interoperability and minimize EMI leakage through their fully-shielded design

  • Standard SFP+ latch interoperable with all compliant interfaces

Standards

  • Electrical: SFF-8431, SFF-8083

  • Mechanical: SFF-8432

  • EEPROM: SFF-8472

  • IEEE: 10GBase-CR

Electrical

  • Min. Dielectric Withstand Voltage: 300VDC

  • Insulation Resistance: 1000Mohms

  • Current Rating: 0.5 Amp Min/Signal Contact

Flammability Rating

  • UL 94 V-O

Green Features

  • RoHS, Lead Free

Shield

  • Braid/Foil

Plug

  • Backshell Material: Nickel-Plated Zinc
    Diecast

  • Contact material: PCB with Gold-Plated Pads

  • Plastic Material: LCP

  • Latch: Positive Latching w/ Lanyard Pull

Cable

  • Conductor: Solid

  • Wire Gauge: 30 AWG to 24 AWG

  • Impedance: 100+/- 5 ohms

  • Construction: Twin axial Cable ODCable

  • 30 AWG = 4.45mm (0.175 in)

  • 28 AWG = 4.7mm (0.185 in)

  • 24 AWG = 5.7mm (0.255 in)

  • Jacket Type: PVC

  • Bend Radius: 5x Cable OD

Compatability

  • MSA Compliant: Cables are compliant
    with Multi-Sourcing Agreement compliant

  • SFP ports Cisco Compatible: Starting with Cisco NX-OS Software release 4.1(3)N2.1, these cables are compatible with the Nexus 2000 and 5000 series switches

Environment

  • Operating: -10°C to 70°C


N.W.: 0.45Kgs/Piece
