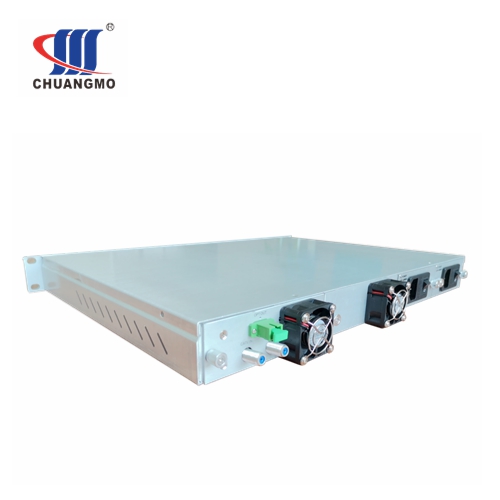

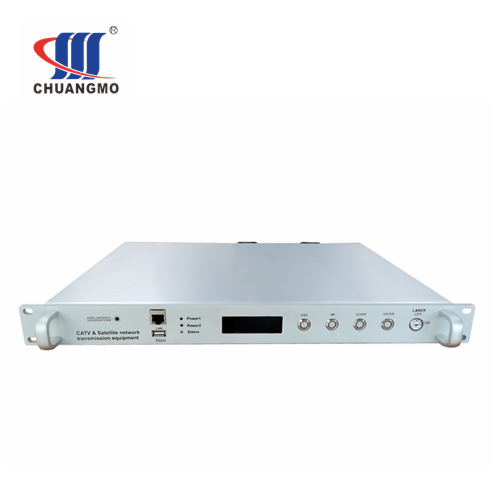

Chuangmo CMOT-30FT series satellite L-Band optical transmitter, adopts high linearity DFB laser and direct modulated way. It can transmit 950~2600MHz L-Band analog or digital satellite signal (SAT-IF) receiving by satellite aerial radio high frequency head, to realize total transparency, high quality, long distance transmission through optical fiber. It also can sue satellite L-Band up/down link.

Optical operating wavelength of CMOT-30T is optional as 1310nm or 1550nm.

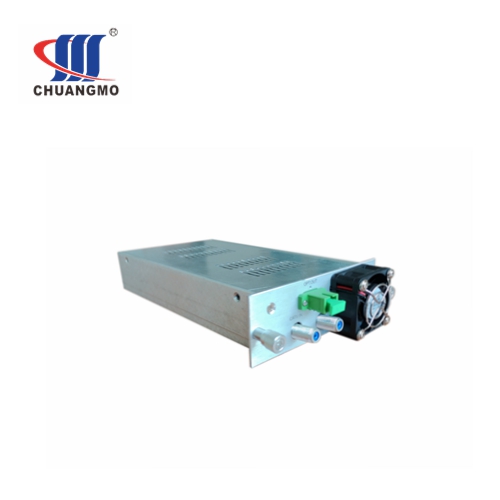

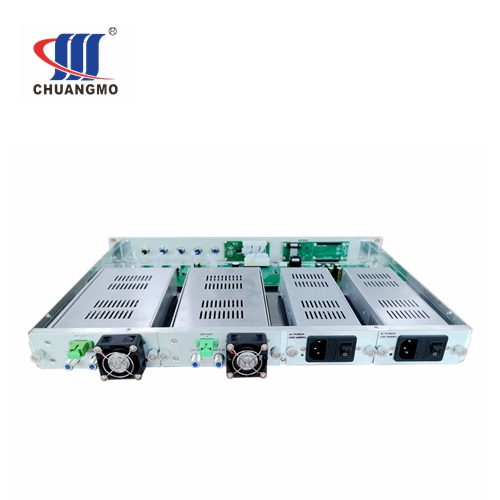

Meanwhile, CMOT-30FT Exclusive  modular design. equipped with 2 main board module and 2 power supply module. all in convenient plug-in design. and with ChuangMO exclusive smart module auto read function(if replace the main board modular with other function modules,such as EDFA module, or different CATV power module, it can self-detect and adjust).

1550nm optical transmitter, ITU standard wavelength can be selected, suitable for DWDM to realize network-upgrading and capability-expansion. It can work together with EDFA, YEDFA to amplify the optical power. It can be compatible with any FTTx PON technology.

 Product features

 Exclusive Plug-in Modular design, support auto adjust between different function modules

 Smart self-detection software

 Seperate Satellite and CATV RF Input port

 Wide 45~2600Mhz as operating bandwidth,available for L-band analog and digital signal transmission

 Wavelength 1310nm/1550nm optional

 TG optical transmitter (standard type), build-in AGC linearity amplifier.

 Perfect laser APC, ATC control electric, prove long lifetime and high reliable work.

 Optical transmitter can supply 13VDC or 18 VDC to LNB.

 Capacity of resisting electromagnetic, radio frequency, thunderstorm

 Compatiable with all kinds of FTTX PON Technology

 Main application

 Satellite L-Band building fiber distribution system

 Ocean steamer satellite fiber distribution system

 Satellite L-Band uo/down fiber link
