1550nm MINI Optical Transmitter 10mW CMOT-10R-15

Chuangmo CMOT-10R-1550 1550nm Mini FTTH Optical Transmitter.used in FTTH Triple Play network for short distance signal transmission.(analog signal 10~15Km, digital signal 20~30Km). it can also used for wavelength converter. for cable opretaors who only have 1310nm signal. and plan to upgrade to 1550nm. with fiber input, it can also work as fiber optical repeater. and standard RF input, RF test port. meanwhile, built in stable switch power supply can provide 220VAC and 60VAC.

Description Package Information Inquiry

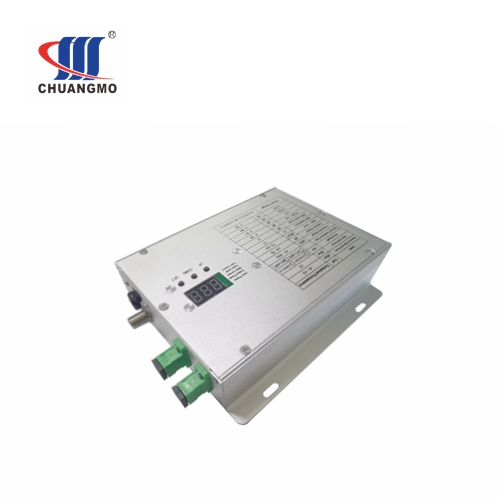

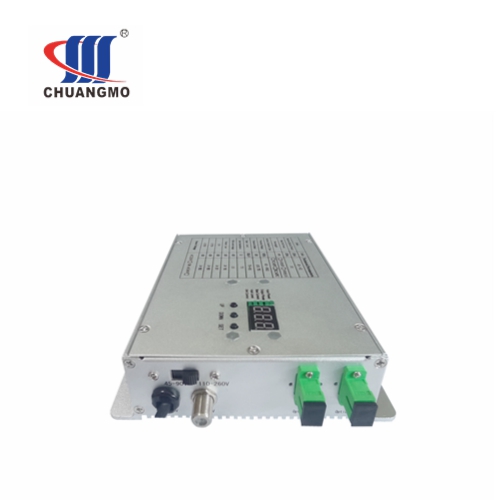

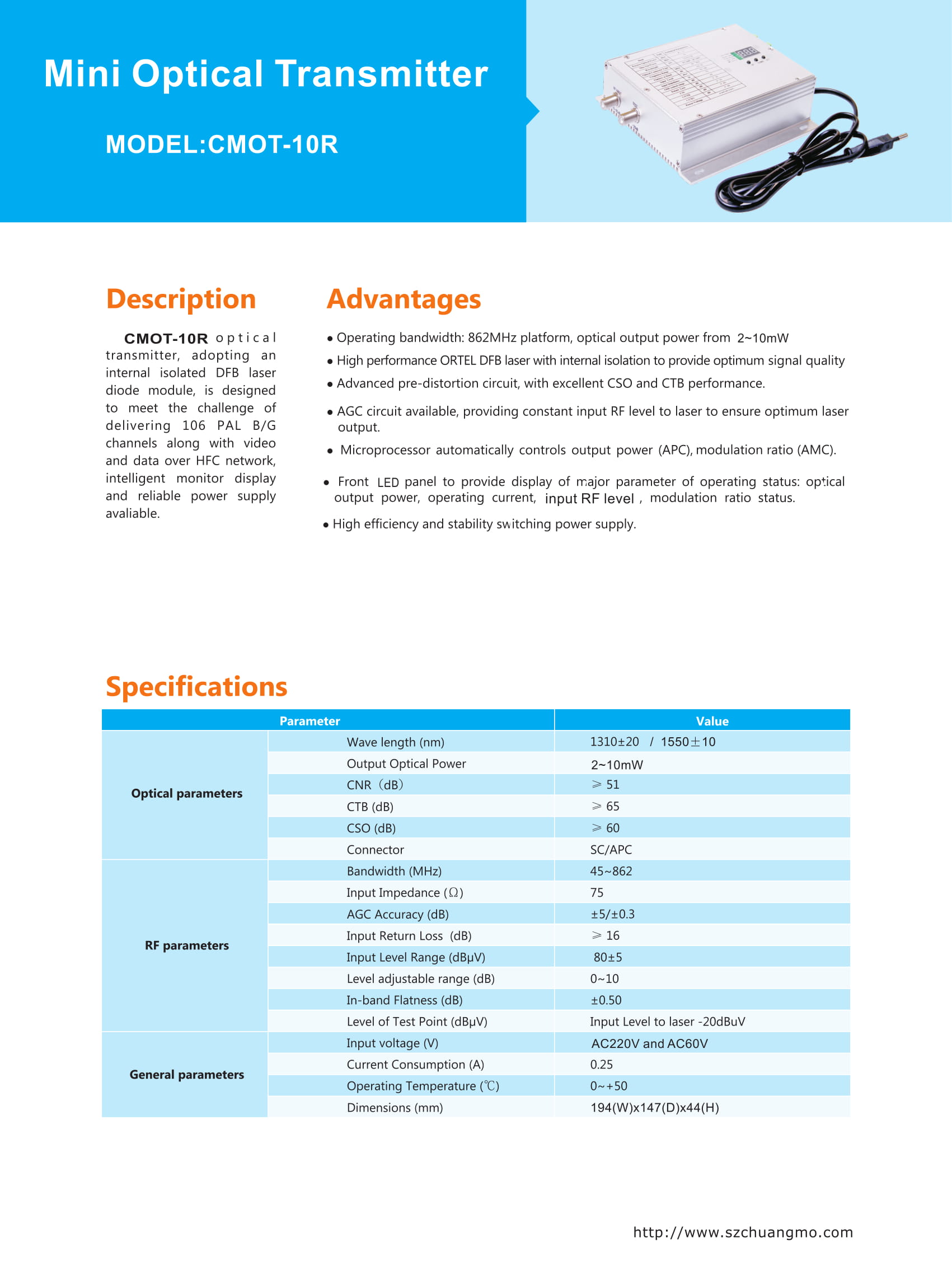

CMOT-10R series 1550nm mini optical transmitter is a smart & compact device, which combined all useful function of 1U rack mounted transmitter at lower cost. best choice for short distance signal transmission.

Meanwhile, for those cable operators who only have 1310nm signal. and wanna upgrade their network to 1550nm. can also use our 1550nm optical transmitter. input 1310nm fiber signal, and output is 1550nm signal.

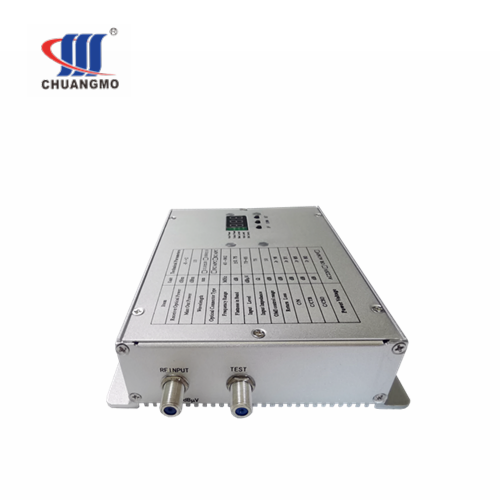

CMOT-10R-1550nm optical transmitter, adopts high linearity DFB coaxial laser, output power 2~10mW optional.(accept customization. by default is 10mW/10dB). with RF input(75~85dBuV suggest), RF Test port(-20dB) and AGC Fiber In.

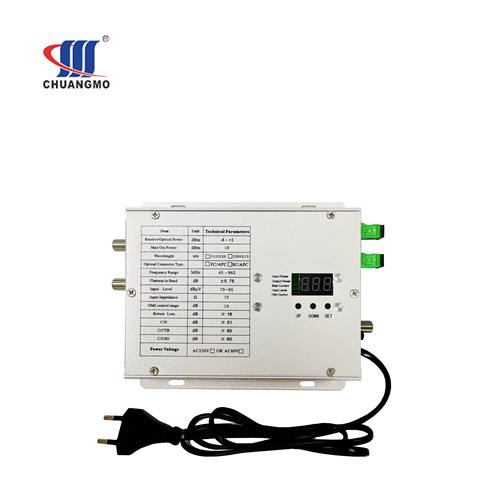

Front plate adopts 3 digit nixie tube display for Optical input power, Optical output power, laser bias current, RF input level and OMI control. in 1dB stepping control. full view for transmitter working status monitoring.

Built in CM branded Hybrid module and AGC Optical module, perfect pre-distortion adjustment circuit and laser APC,ATC closed loop control circuit.

Product features
