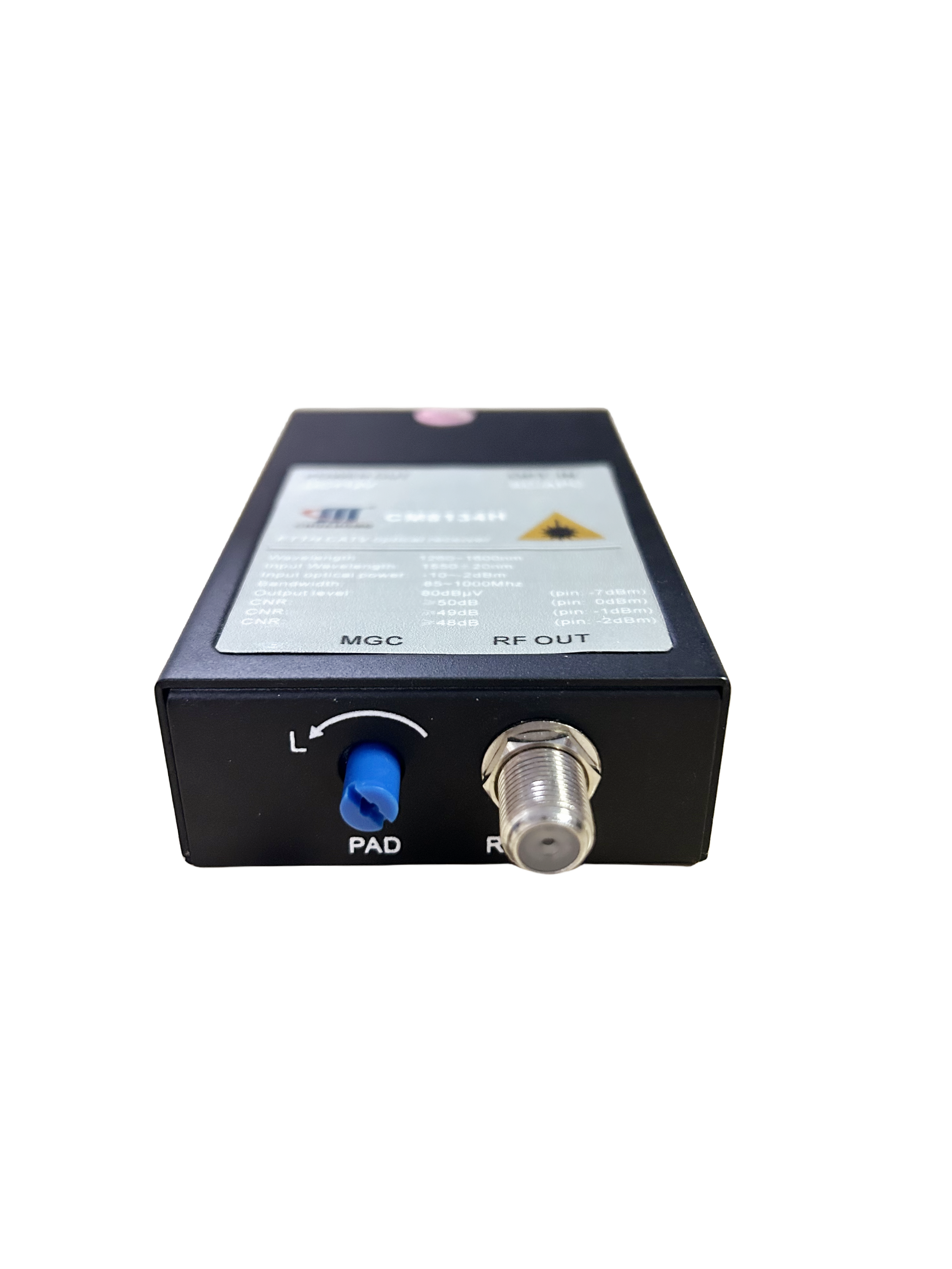

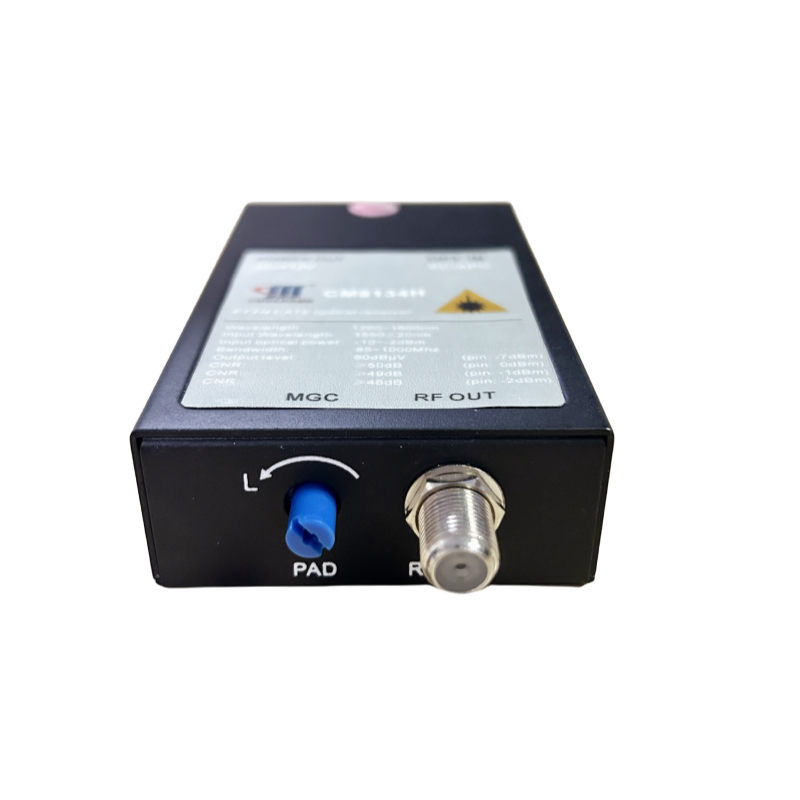

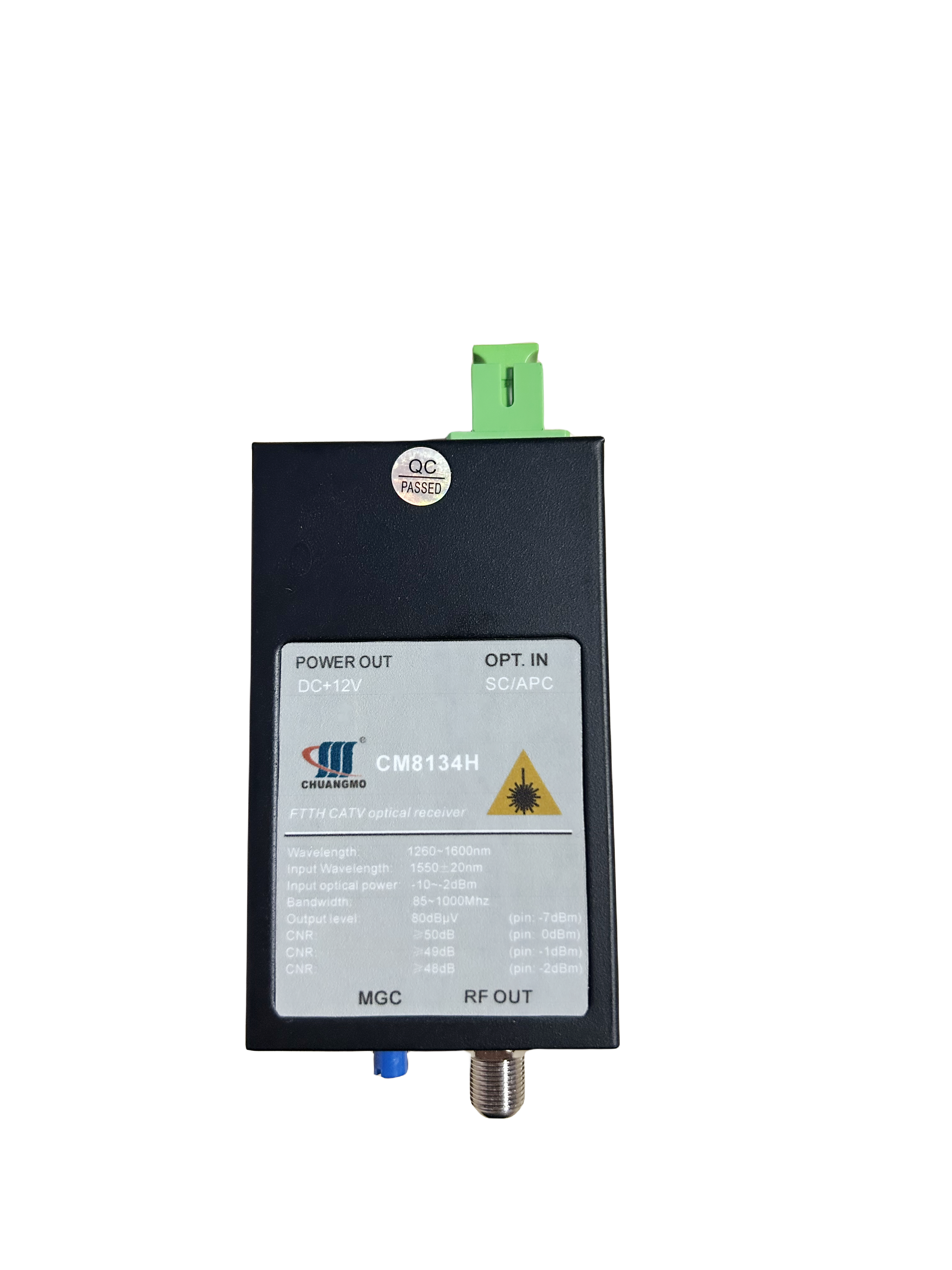

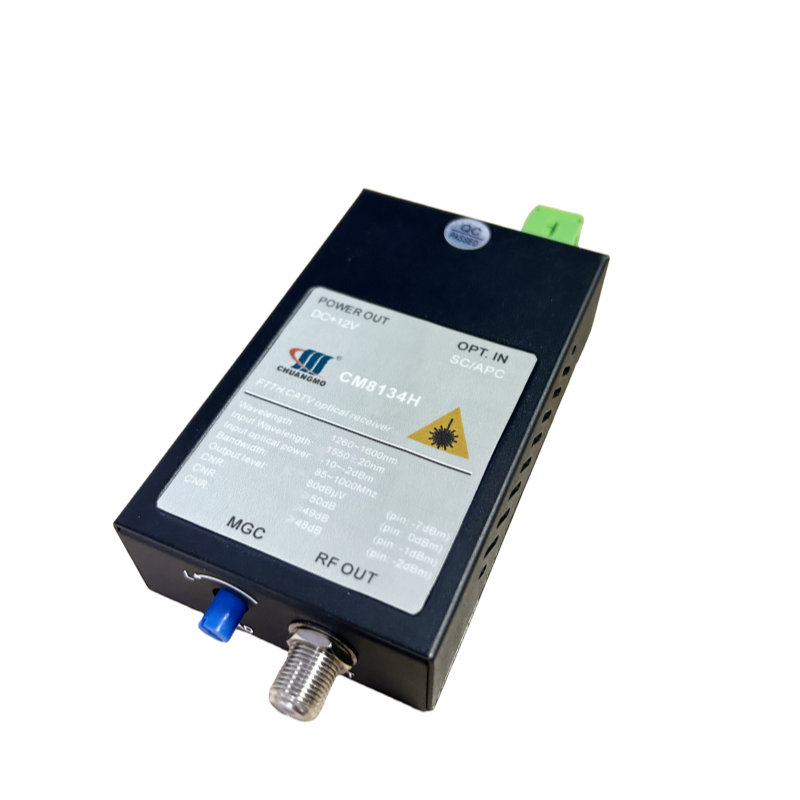

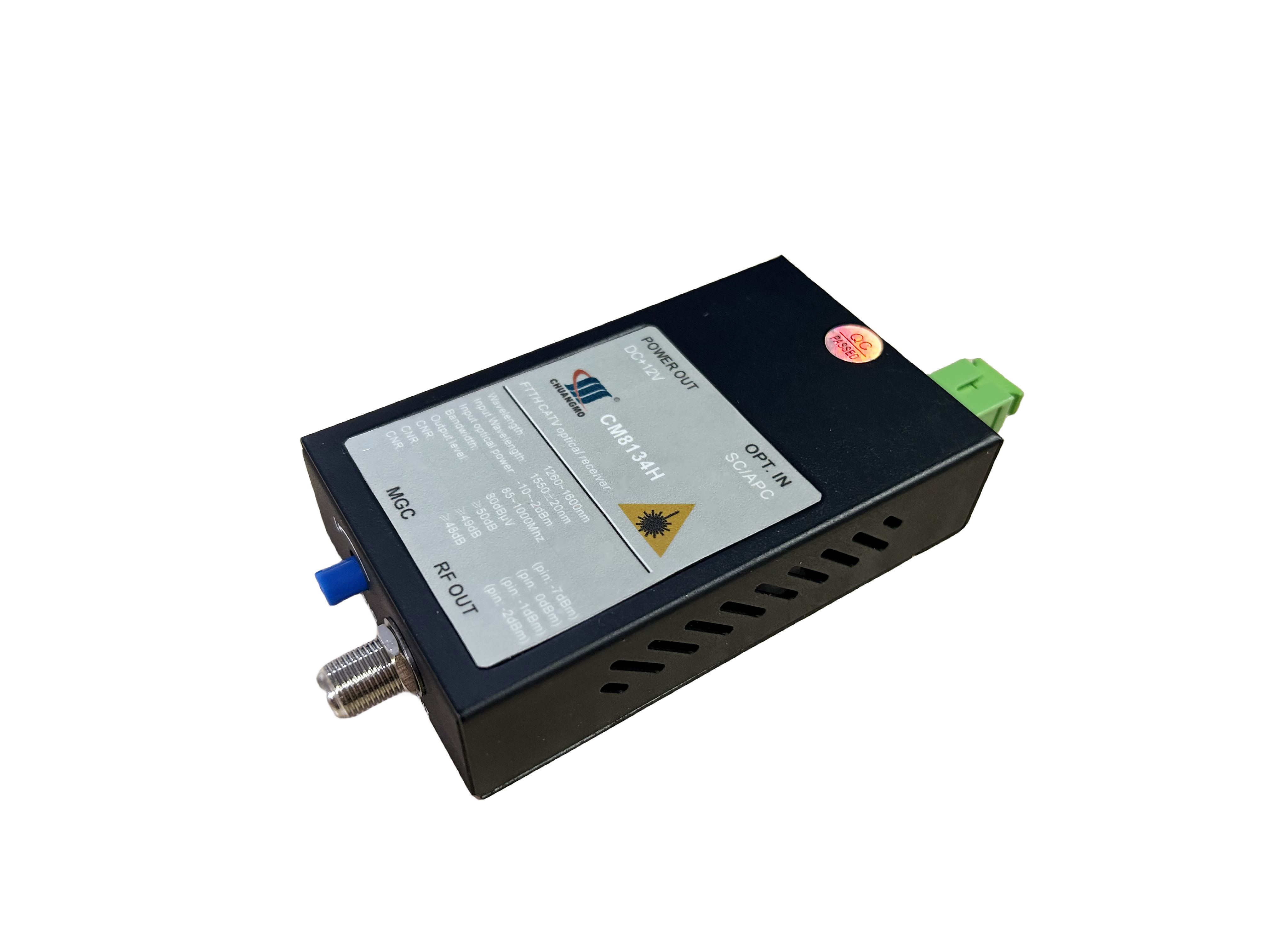

FTTH 1550nm CATV Optical Receiver

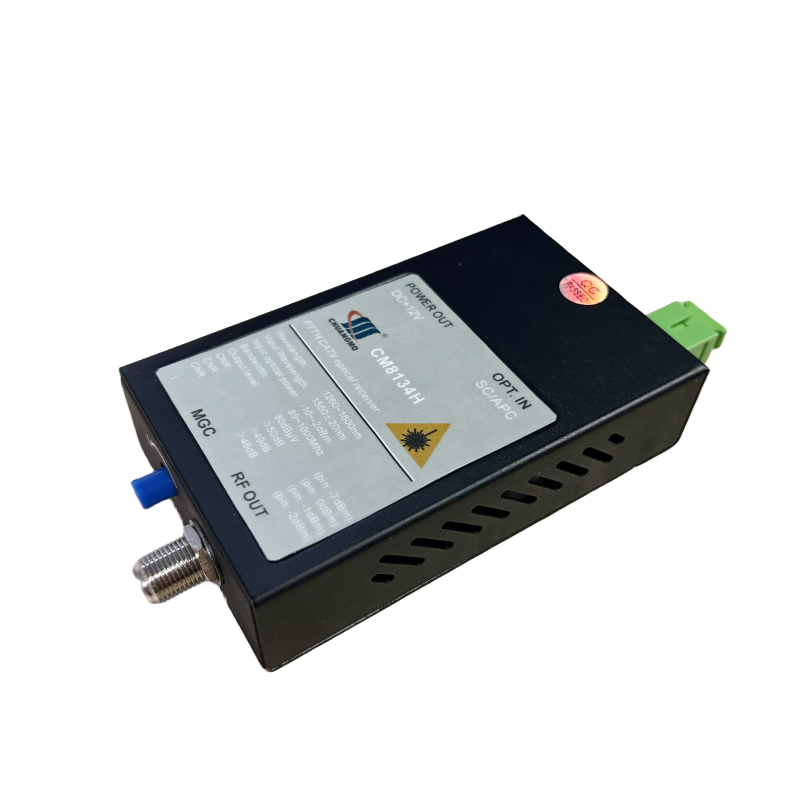

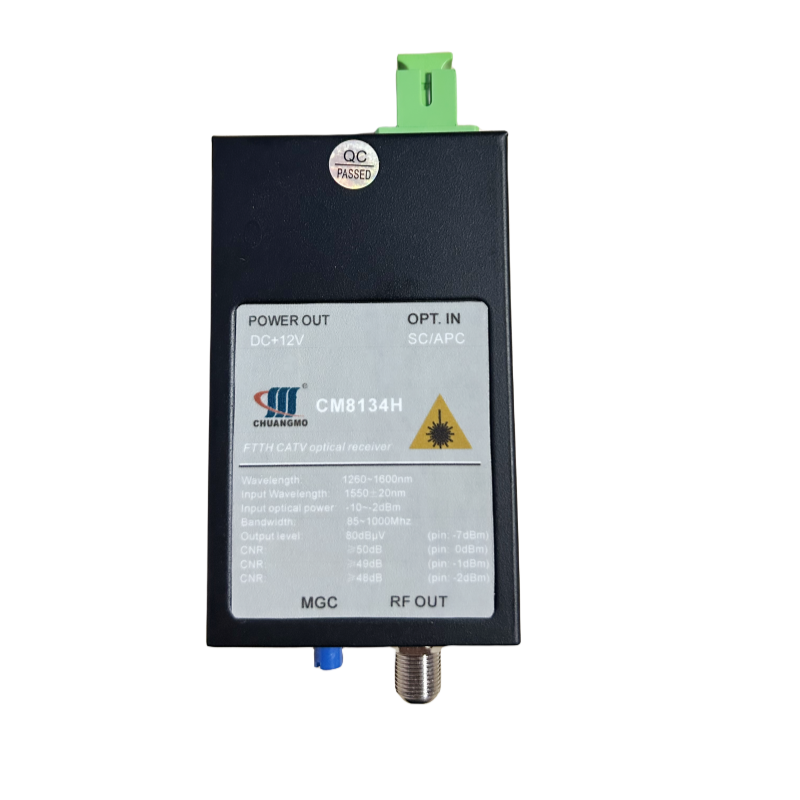

CM8134H series FTTH CATV Optical Receiver, with 1 fiber input port which operates in 1260~1620nm or 1550nm. at 47~1000Mhz bandwidth. with 1 RF Output port. designed for digital TV FTTx network. It adopts high sensitivity optical receiver tube, no power supply, no power consumption. When input optical power Pin=0dBm, output level Vo=94dBμV. It can be economically and flexibly used in the application of fiber to the home.
Description Package Information Inquiry

Shenzhen Chuangmo FTTH MINI CATV Optical Receiver series, which operates on high bandwidth of 47~1000MHz, with high sensitivity optical receiver tube and Chuangmo special low noise matching circuit,Whether used in analog television or digital television, have high reception sensitivity and excellent intermodulation distortion index. is a low power, high performance, cost-effective FTTH (fiber to the home) CATV optical receiver. enabling both analog and digital signals to FTTH and triple-play network.

There are listed models to meet operators requirement:

1)CM8134H: For FTTH(Fiber To The Home). 1100~1600nm. RF Output level 94dBuV @0dBm Optical Input;

2) CM8134H-15: For FTTH(Fiber To The Home). 1550nm only. RF Output level 94dBuV @0dBm Opti±cal Input;

3) CM8134HW: For FTTH(Fiber To The Home). Input wavelength: 1310nm,1490nm,1550nm. CATV wavelength: 1550±10nm. Output wavelength: 1310nm, 1490nm. RF Output level 94dBuV @0dBm Optical Input;

 Product feature

 Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45dB)

 Wide dynamic receiving optical power range: within Pin=-15, MER≥36.8dB

 Can save a large number of optical power resource, greatly reduce the network

configuration cost

 In the range of 47~1000MHz, all have good flatness (FL ≤± 0.75dB)

 Metal shell, supply safeguards to opto-electrical sensing device

 High output level can supply for many users

 Low power consumption, high cost performance

 Main application

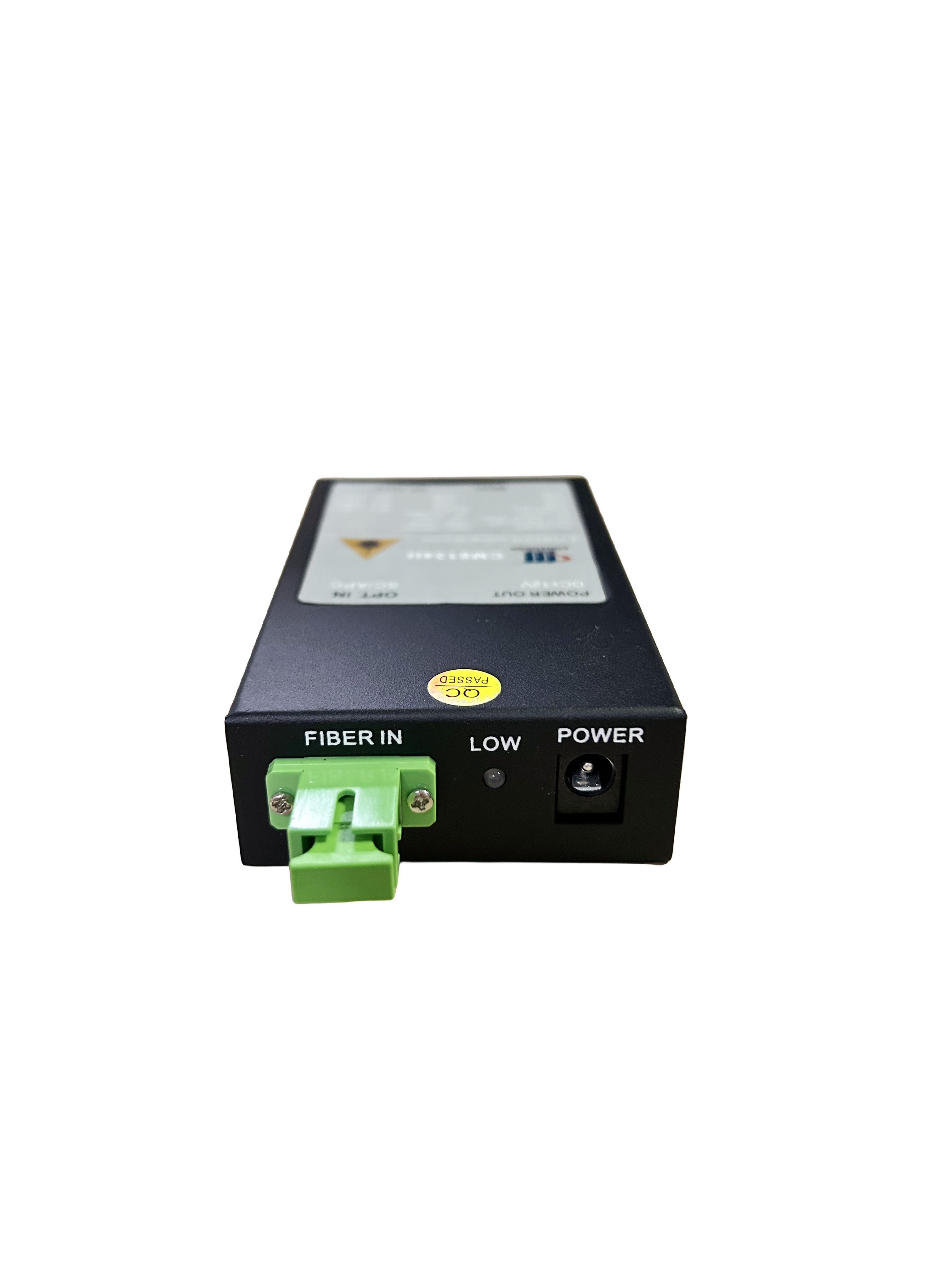

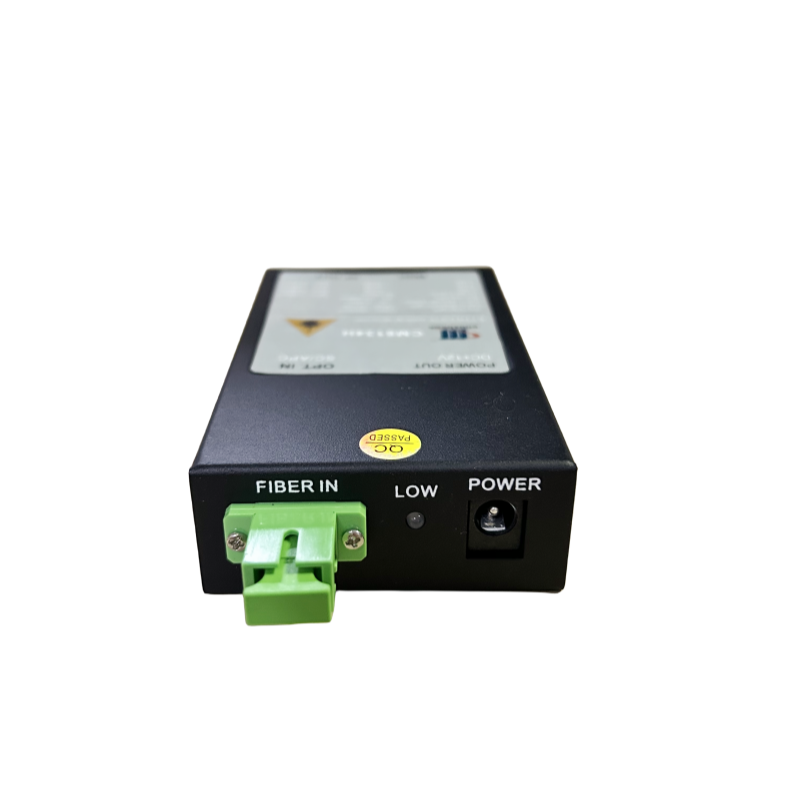

 Status Indication

 Red :                         >+2dBm

 Green :                    +2~-16dBm

 Orange :                  -16~-20dBm

 Red :                       <-20dBm

Note: Users can set the order request

1piece/Box; 44pcs/Carton; 18Kgs/Carton.(G.W). CBM: 0.054/Carton.
