XGS-PON & SAT-IFCATV WDM Optical Receiver
Chuangmo CMOR-AWS-XG(S) FTTH CATV + SAT-TV high-performance optical transmission equipment, suitable for CATV and satellite live TV transmission on the same network. Use high-bandwidth, high-sensitivity photocells, low-noise matching circuits and GaAs amplification, the device has receiving range -15 ~ + 2dBm, and AGC stable output: -12 ~ -2dBm. In order to facilitate the use of the user, the device is also equipped with a working power and light power receiving monitoring LED indicator as well.
CMOR-AWS-XG(S)WDM WDM optical receiver, with XGS-PON interface, can be compatible with any FTTx PON technology, which achieves multi-network integration of CATV + satellite TV (DVB-S) + Internet. It can be used along with Shenzhen Chuangmo WDM EDFA for large-area FTTH triple play transmission and coverage.
CMOR-AWS-XG(S)WDM WDM SAT-IF CATV optical receiver achieving GPON, 10GPON, XGPON, XGSPON, NGPON2, GEPON, Ethernet PtP & Wavelength multiplexing of RF video (CATV+ SAT-TV) in FTTH XGS-PON networks. which can meet the needs of FTTH fiber to household in CATV+SAT-TV & XGS-PON optical network to receive 1550nm CATV+SAT-TV signal and output XGS-PON signal (1310/1490nm & 1270/1577nm).

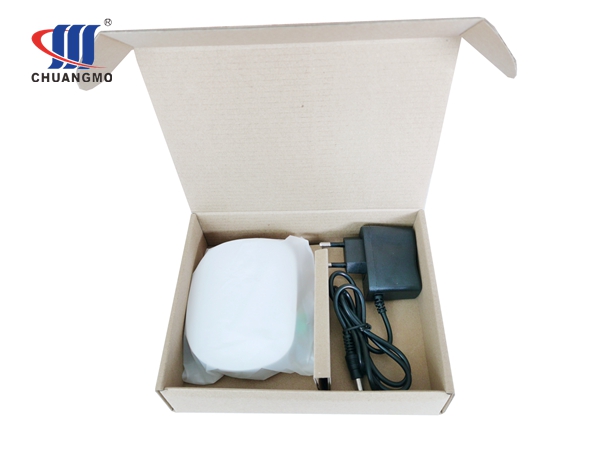

Single piece/Box. 40pcs/carton.
N.W.: 0.25Kgs(including power adaptor), G.W.: 12.50.00Kgs/Carton. MEAS.: 0.054CBM/Carton.
