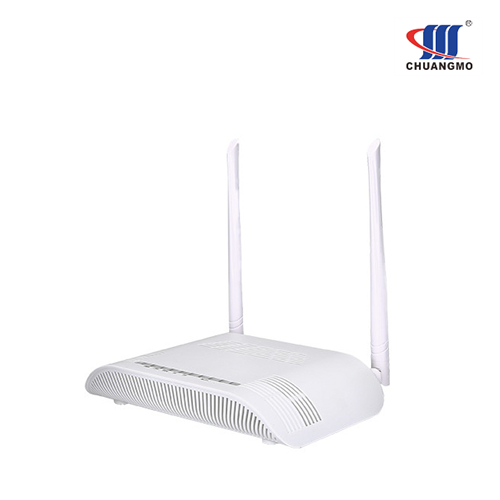

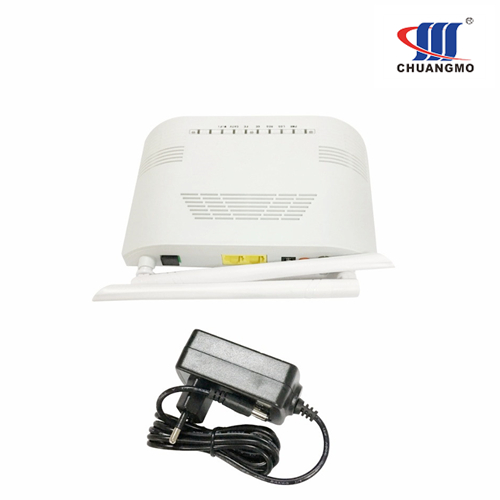

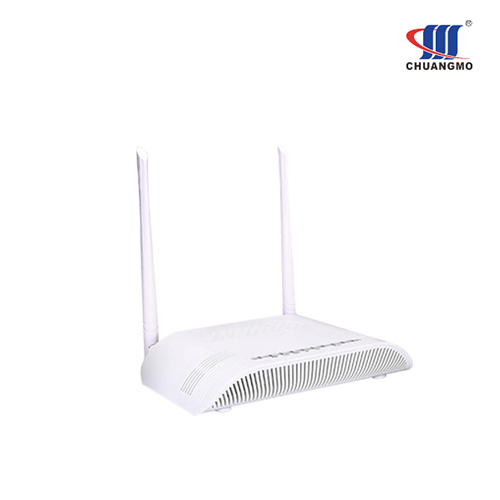

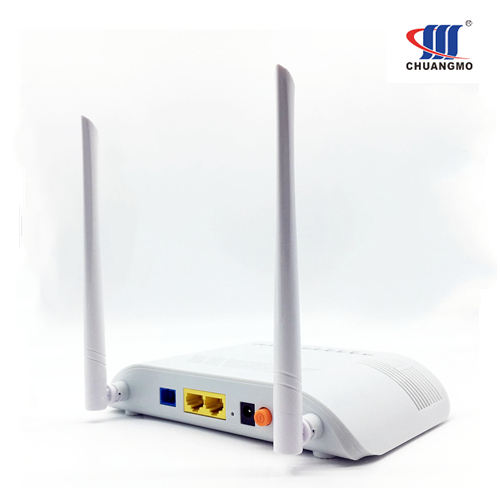

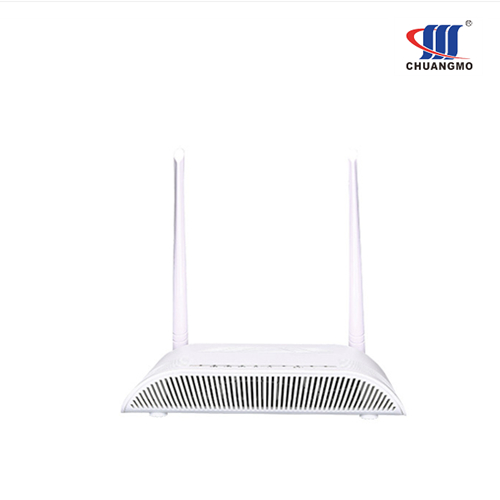

1GE+1FE+WIFI GEPON ONU
CM2802GW 1GE+1FE+WIFI xPON ONU is a terminal devices which designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The 1GE+1FE+CATV ONU are based on mature G/EPON technology, which have high ratio of performance and at reasonable price, meanwhile, it can meet the technology of 802.11n WiFi (2T2R), Layer 2/3. It is not only highly reliable but also easy to maintain, with guaranteed QoS for different service. Besides, it is fully compliant with technical regulations such as IEEE802.3ah.
Product Features
Dual Mode( can access gpon/epon olts ).
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Integrated OAM remote configuration and maintenance function.
Support rich QinQ VLAN functions and IGMP Snooping multicast features.
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Support 802.11n WiFi(2T2R) function.
Support NAT, Firewall function.
Support IPv4 and IPv6 dual stack.
The WAN port supports bridge, router and bridge/router mixed mode
| Technical item | 1GE+1FE+WIFI | |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM | |
| Wavelength | Tx1310nm,Rx 1490nm | Tx1310nm,Rx 1490nm and 1550nm |
| Optical interface | SC/UPC connector | SC/APC connector(signal fiber with WDM) |
| LAN interface | 1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector | |
| WiFi interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM | |
| CATV interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) | |
| LED | 6, For Status of POWER、LOS、PON、GE、FE、WiFi | 7, For Status of POWER、LOS、PON、GE、FE、WiFi、CATV |
| Operating condition | Temperature: 0℃～+50℃ Humidity: 10%～90%（non-condensing） | |
| Storing condition | Temperature: -30℃～+60℃ Humidity: 10%～90%（non-condensing） | |
| Power supply | DC 12V/1A | |
| Power supply | ≤6W | ≤7W |
| Dimension | 185mm×120mm×34mm（L×W×H） | |
| Net weight | 0.24Kg | 0.29Kg |
