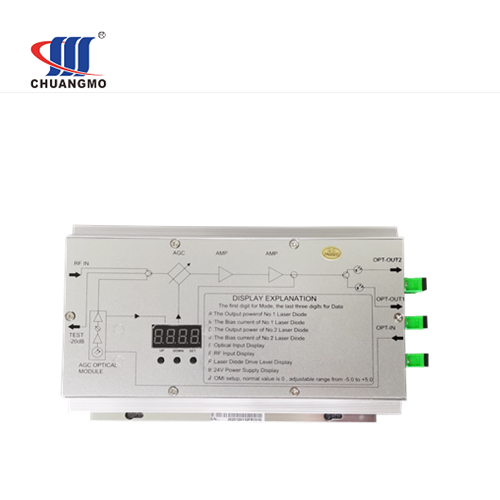

CATV 1310nm MINI Optical Transmitter 10+10mW
CMOT-10FR series 1310nm mini 10+10mW optical transmitter is a smart & compact device, which combined all useful function of 1U rack mounted transmitter at lower cost. best choice for short distance signal transmission.
CMOT-10FR-1310nm optical transmitter, adopts high linearity DFB coaxial laser, output power 2~12mW optional.(accept customization. by default is 10mW+10mW). with RF input(75~85dBuV suggest), RF Test port(-20dB) and AGC Fiber In.
Front plate adopts 3 digit nixie tube display for Optical input power, Optical output power, laser bias current, RF input level and OMI control. in 1dB stepping control. full view for transmitter working status monitoring.
Built in CM branded Hybrid module and AGC Optical module, perfect pre-distortion adjustment circuit and laser APC,ATC closed loop control circuit.
Aluminum compact housing, excellent heat-dissipation
Low chirp, high linearity DFB laser, chirp compensation
Smart digital display and control system, easy adjust
Input 100~240V Output DC24V stable output AC/DC power adaptor
24VDC power in can also receive power from UPS power supply or Solar power supply both as per construction condition
CM branded hybrid module and AGC Optical module with great linearity
Suitable for analog and digital signal transmission
Q: What is the Max. output power?
A: it will be 10dB+10m10dB
Q: How long do you need for production? like 10pcs.
A: This is one of our hot sale item. ready stock.
Q: Do you accept payment via West Union?
A: We can accept payment via: West Union, Moneygram, Paypal,TT, Wechat,Alipay.
Package details: 1piece/box. 10pcs/carton. N.W.: 1.20Kgs/piece; G.W.: 14.00Kgs/carton. 0.052CBM/carton.
