CATV Micro 1310nm 10mW Optical Transmitter CMOT-10M-13

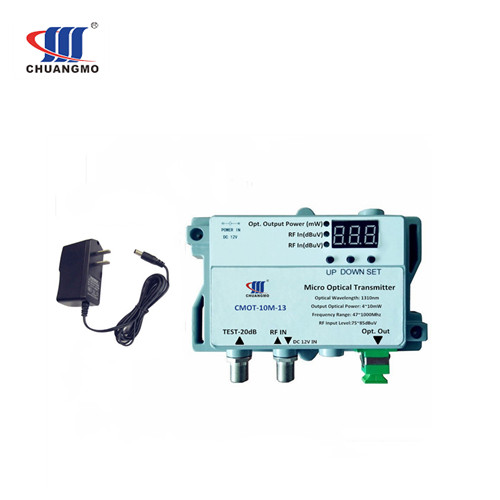

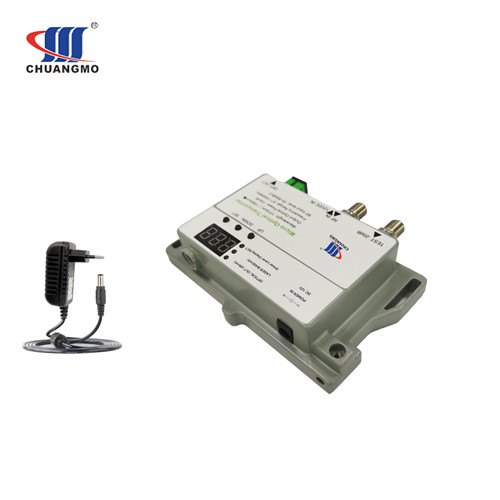

Chuangmo CATV CMOT-10M 1310nm internal 10mW Optical Transmitter. mostly used in short distance signal transmission.(analog signal 10~15Km, digital signal 20~30Km).Compact smart aluminum die-cast casing, and digital display control and monitoring. standard RF input, RF test port. Perfect for short distance Cable TV HFC transmission.
Product Features
l Designed for Cable TV HFC Networks
l Excellent Linearity and flatness
l Single-mode fiber high return loss
l Using GaAs amplifier active devices
l Ultra low noise technology
l Using DFB coaxial small package laser

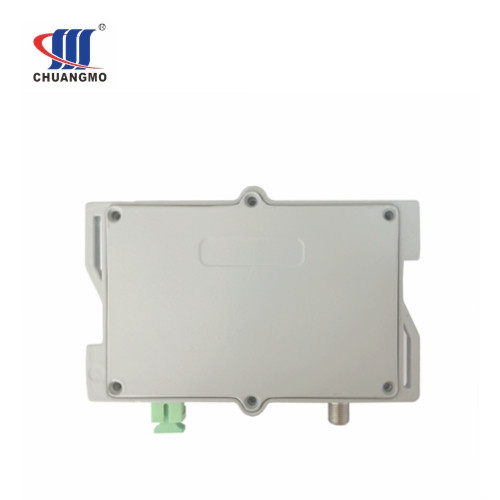

l Compact design with aluminum die-cast casing, excellent heat-dissipation

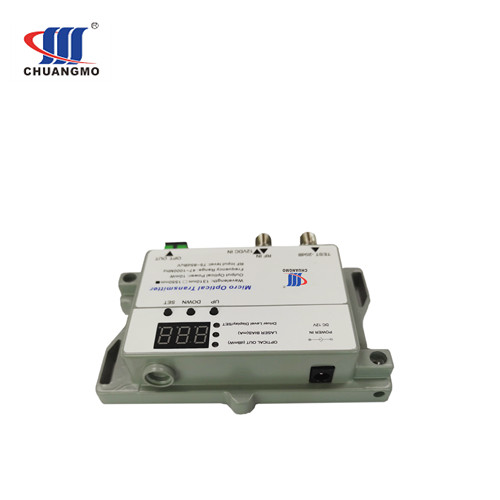

l Smart digital display(Output power, RF Input power adjustable) and control

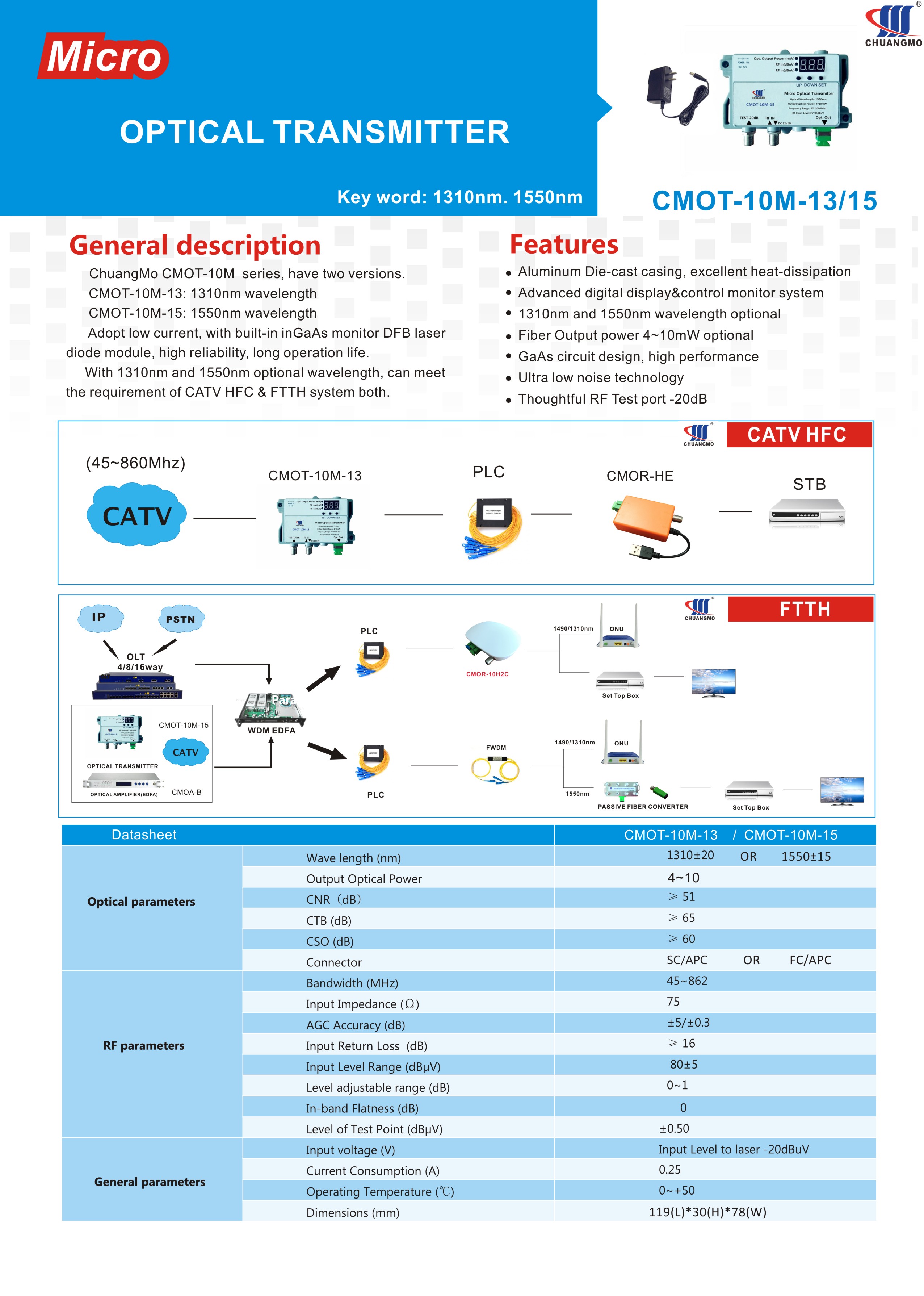

Product Datasheet
Number Item | Unit | Description | Remark |
| Customer Interface | |||
| RF Connector | F-female | ||
| Optical Connector | SC/APC | ||
| Power Supply | DC Adapter | ||
| Optical Parameter | |||
| Optical Return Loss | dB | ≥45 | |
| Output Optical Wavelength | nm | 1310nm/1550 | |
| Output Optical Power | mW | 10 | |
| Optical Fiber Type | Single Mode | ||
| RF Parameter | |||
| Frequency Range | MHz | 47-1000 | |
| Flatness | dB | ±0.75 | |
| RF Input Level | dBµV | 80±5 | |
| Return Loss | dB | ≥16 | |
| C/N | dB | ≥52 | |
| CSO | dB | ≥60 | |
| CTB | dB | ≥63 | |
| Input Impedance | Ω | 75 | |
| Other Parameter | |||
| Power Supply | VDC | 12 | |
| Power Consumption | W | <2 | |
| Dimensions | mm | 119*30*78 | |
Reference price: USD5.00~USD10.00
Package Details: 1pieces/box. 40pcs/Carton. G.W: 15.00Kgs/Carton.N.W.: 0.025Kgs/piece.
0.052CBM/carton.
