1310nm MINI Optical Transmitter 10mW CMOT-10R-13

Chuangmo CMOT-10R-1310 1310nm Mini CATV Optical Transmitter. mostly used in short distance signal transmission.(analog signal 10~15Km, digital signal 20~30Km). with fiber input, it can also work as fiber optical repeater. and standard RF input, RF test port. meanwhile, built in stable switch power supply can provide 220VAC and 60VAC.
Description Package Information Inquiry

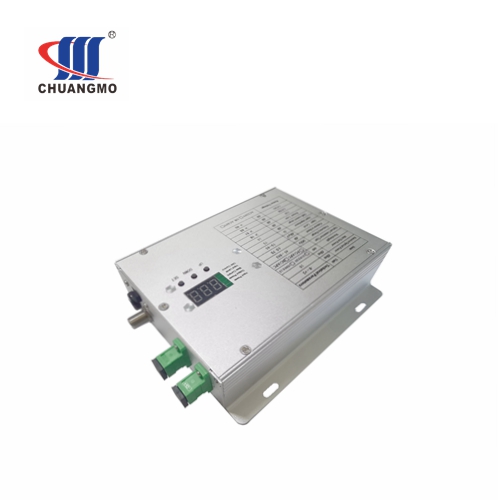

CMOT-10R series 1310nm mini optical transmitter is a smart & compact device, equipped with cost effective laser diode(USD3.00)-Can provide for spare & power supply of 220+60VAC(USD4.00) -Can provide for spare, CM Amplifier and optical receiving modules.


It has combined all useful function of 1U rack mounted transmitter at lower cost. best choice for short distance signal transmission.

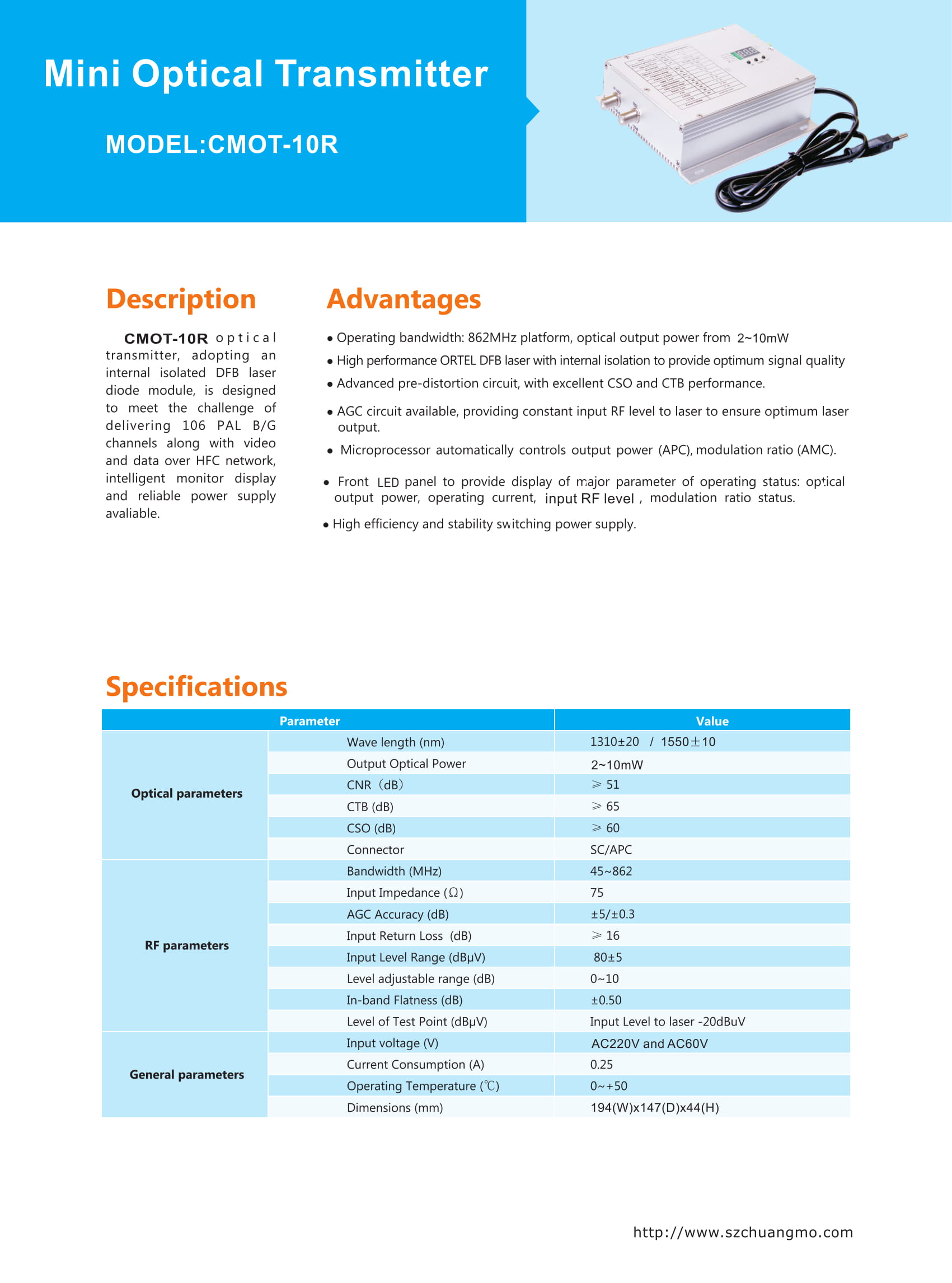

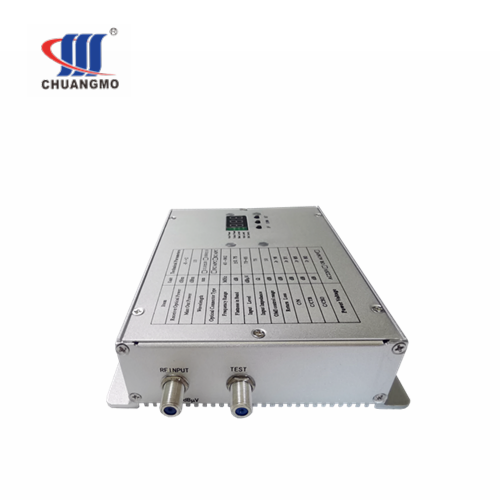

CMOT-10R-1310nm optical transmitter, adopts high linearity DFB coaxial laser, output power 2~10mW optional.(accept customization. by default is 10mW/10dB). with RF input(75~85dBuV suggest), RF Test port(-20dB) and AGC Fiber In.

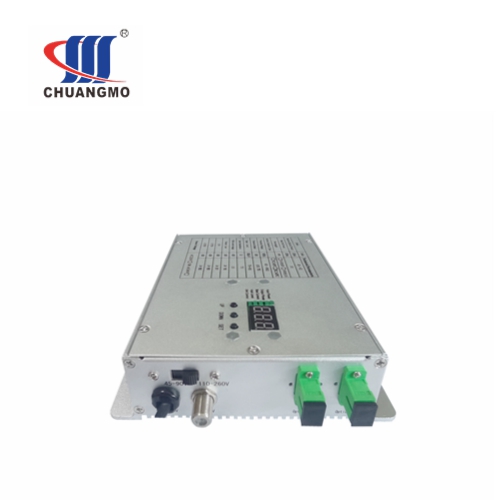

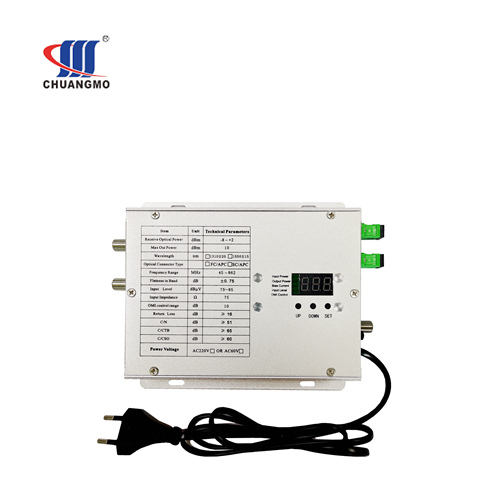

Front plate adopts 3 digit nixie tube display for Optical input power, Optical output power, laser bias current, RF input level and OMI control. in 1dB stepping control. full view for transmitter working status monitoring.


Built in CM branded Hybrid module and AGC Optical module, perfect pre-distortion adjustment circuit and laser APC,ATC closed loop control circuit.


 Product features

 Aluminum compact housing, excellent heat-dissipation

 Low chirp, high linearity DFB laser, chirp compensation

 Smart digital display and control system, easy adjust

 Stable/lighting protection switch power supply for 220VAC and 60VAC.

 CM branded hybrid module and AGC Optical module with great linearity

 Suitable for analog and digital signal transmission


FAQ:

Q: What is the Max. output power?

A: it will be 10mW/10dB


Q: How long do you need for production? like 10pcs.

A: This is one of our hot sale item. ready stock.



Q: Do you accept payment via West Union?

A: We can accept payment via: West Union, Moneygram, Paypal,TT, Wechat,Alipay.






Package details: 1piece/box. 10pcs/carton. N.W.: 0.82Kgs/piece; G.W.: 11Kgs/carton. 0.047CBM/carton.
