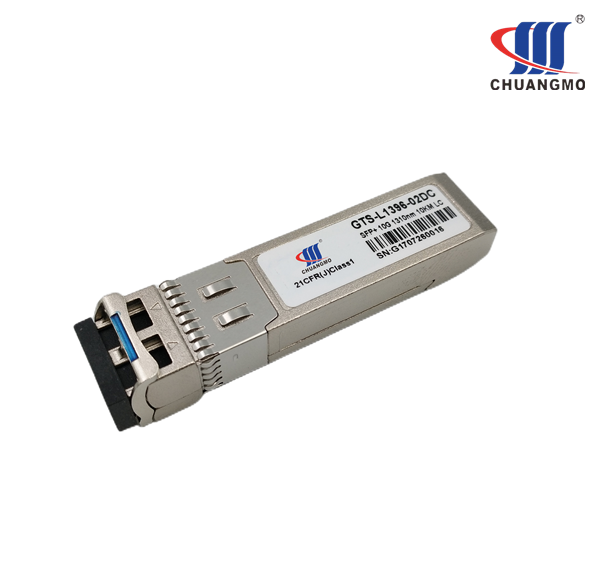

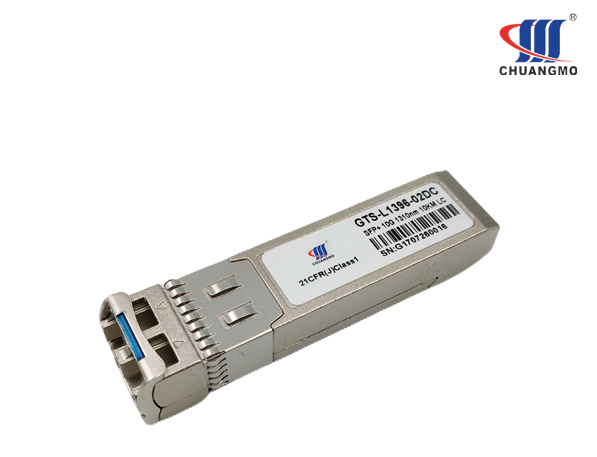

SFP+ 10G BIDI

Chuangmo 10G SFP+ optical transceivers are designed for 10Gb/s serial optical interfaces for data communications. The transceiver can support 1.25Gb/s to 11.1Gb/s. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and storage applications.

Description Package Information Inquiry

Features

*BIDI WDM SFP+

*SFP+ MSA compliant

*Multi-DataRate up to 11.3Gbps

*+3.3V single Power Supply

*Transmission Distance up to 80km

*1330TX/1270RX and 1270TX/1330RX & 1490TX/1550RX and 1550TX/1490RX

*Low power consumption

*Operating Case Temperature: 0~+70C or -40~+85C

*Low EMI and excellent ESD protection

*Class 1 FDA and IEC60825-1 Laser Safety

*RoHS Compliant

Application

-10GBASE-BX

-1000Base-LX Ethernet

-Fiber Channel,8xFC,4xFC,2xFC,1xFC

-Other Optical Links

Part No.	Package	Data Rate(Gbps)	Wavelength(nm)	Distance	Fiber	Connector	Temp.
CMTS-B2396-M2DC	SFP+	10.3125	1270/1330	150m	MMF	LC	0~+70
CMTS-B3296-M2DC	SFP+	10.3125	1330/1270	150m	MMF	LC	0~+70
CMTS-B2396-10Dx	SFP+	10.3125	1270/1330	10km	SMF	LC	0~+70; -40~+85
CMTS-B3296-10Dx	SFP+	10.3125	1330/1270	10km	SMF	LC	0~+70; -40~+85
CMTS-B2396-20Dx	SFP+	10.3125	1270/1330	20km	SMF	LC	0~+70; -40~+85
CMTS-B3296-20Dx	SFP+	10.3125	1330/1270	20km	SMF	LC	0~+70; -40~+85
CMTS-B2396-40Dx	SFP+	10.3125	1270/1330	40km	SMF	LC	0~+70; -40~+85
CMTS-B3296-40Dx	SFP+	10.3125	1330/1270	40km	SMF	LC	0~+70; -40~+85
CMTS-B2396-60Dx	SFP+	10.3125	1270/1330	60km	SMF	LC	0~+70; -40~+85
CMTS-B3296-60Dx	SFP+	10.3125	1330/1270	60km	SMF	LC	0~+70; -40~+85
CMTS-B4596-80Dx	SFP+	10.3125	1490/1550	80km	SMF	LC	0~+70; -40~+85
CMTS-B5496-80Dx	SFP+	10.3125	1550/1490	80km	SMF	LC	0~+70; -40~+85
CMTS-B4596-80DxR	SFP+ with CDR	10.3125	1490/1550	80km	SMF	LC	0~+70; -40~+85
CMTS-B5496-80DxR	SFP+ with CDR	10.3125	1550/1490	80km	SMF	LC	0~+70; -40~+85

10pcs/Tray, 100pcs/Pack, 600pcs/Ctn. G.W: 18Kgs/Ctn. N.W: 0.03Kgs/piece. CBM: 0.045/ctn.
